RACECUBE™ is supplied pre-calibrated and its Cube is paired with the tablet provided. It is important that a specific Cube and tablet supplied are always used together. Should it become necessary, re-calibration can be conducted but previously saved setups may be lost.

RACECUBE™'s unique pairing of its cube-mounted laser and specially coordinated measurement scales, placed at the front and rear of the car, is at the centre of its IP and precision. An approximate distance of 1500mm from each axle centreline is recommended but the user can decide if space is tight. A placement accuracy of +/- 20mm is acceptable with the front and rear bars only needing to be approximately parallel. The magic of RACECUBE™ means the bars do not need to be precisely positioned. The results however are very precise: +/- 1 minute of a degree of individual toe; +/- 2 minutes of total toe.

For more information on setting up a car using RACECUBE™ see the SETTING UP section.

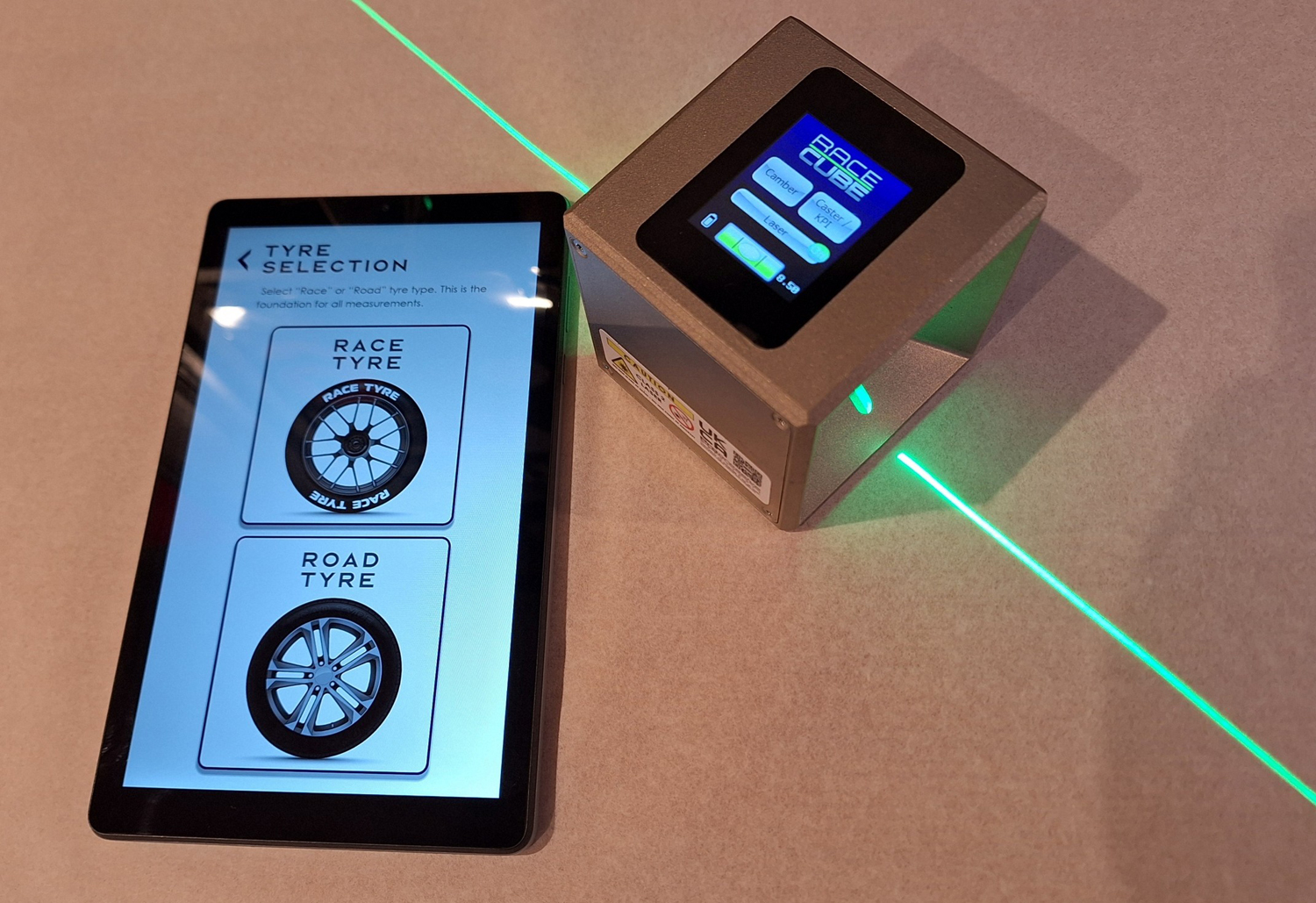

Using RACECUBE - app and device

RACECUBE™  standard equipment as supplied

  • 1 x Tablet with RACECUBE™  App with pre-installed s/w calibration matched with specific Cube
  • 1 x RACECUBE™  aluminium 'Cube' with preinstalled s/w, Class 2(II)laser, electronic inclinometer and magnetic attachment
  • 1 x front folding measurement scale bar with unique measurement scale to match Cube s/w. Made in carbon fibre with aluminium hinges
  • 1 x rear folding measurement scale bar with unique measurement scale to match Cube s/w. Made in carbon fibre with aluminium hinges
  • 1 x magnetic T-bar with 3x wheel rim adjustable plastic feet mounts
  • 3 x alternative steel wheel rim adaptor feet for T-bar
  • 1 x adjustable foot stay for T-bar
  • 1 x magnetic Y-bar with 3x wheel nut adjustable magnetic feet mounts
  • 1 x caster plate gauge
  • 1 x 8m steel tape
  • 1 x tablet charging adaptor (UK 3 pin)
  • 1 x USB tablet connector
  • 1 x 9v PP3 replacement battery with 1.2Ah capacity (recommended) for Cube
  • 1 x hex-head screwdriver for Cube battery panel removal

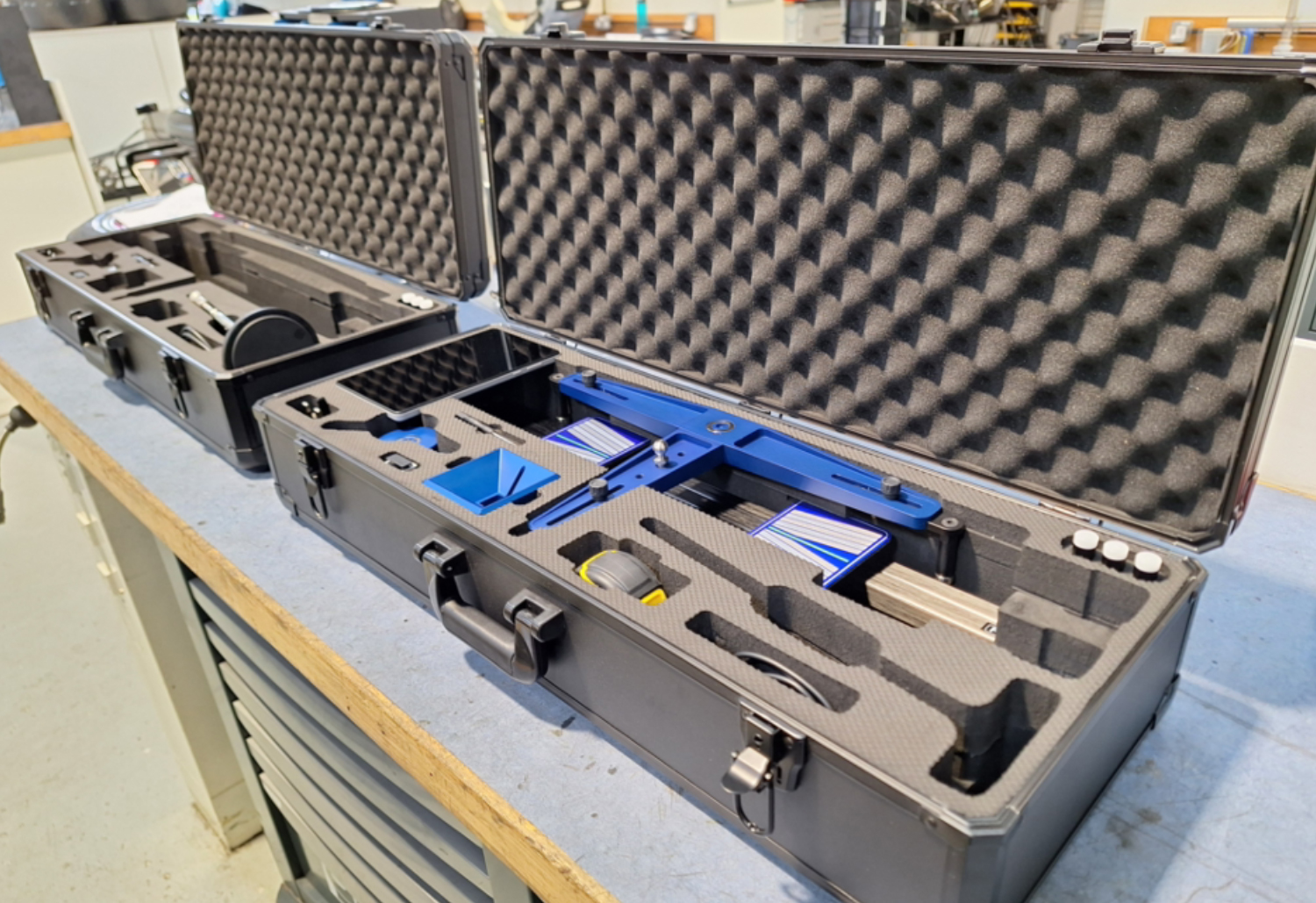

  • 1 x carry-case: 77cm x 32cm x 18cm with precision-cut internal foam protection
Using RACECUBE - equipment

Customisation

In addition to the standard RACECUBE™ Cube wheel attachment equipment supplied, as an alternative it is possible for customers to request the design and manufacture of bespoke wheel adaptors that are tailored to attach the Cube to their own vehicle’s setup wheels, wheel nuts or wheels. To explore this service further, customers should contact info@racecube.uk
